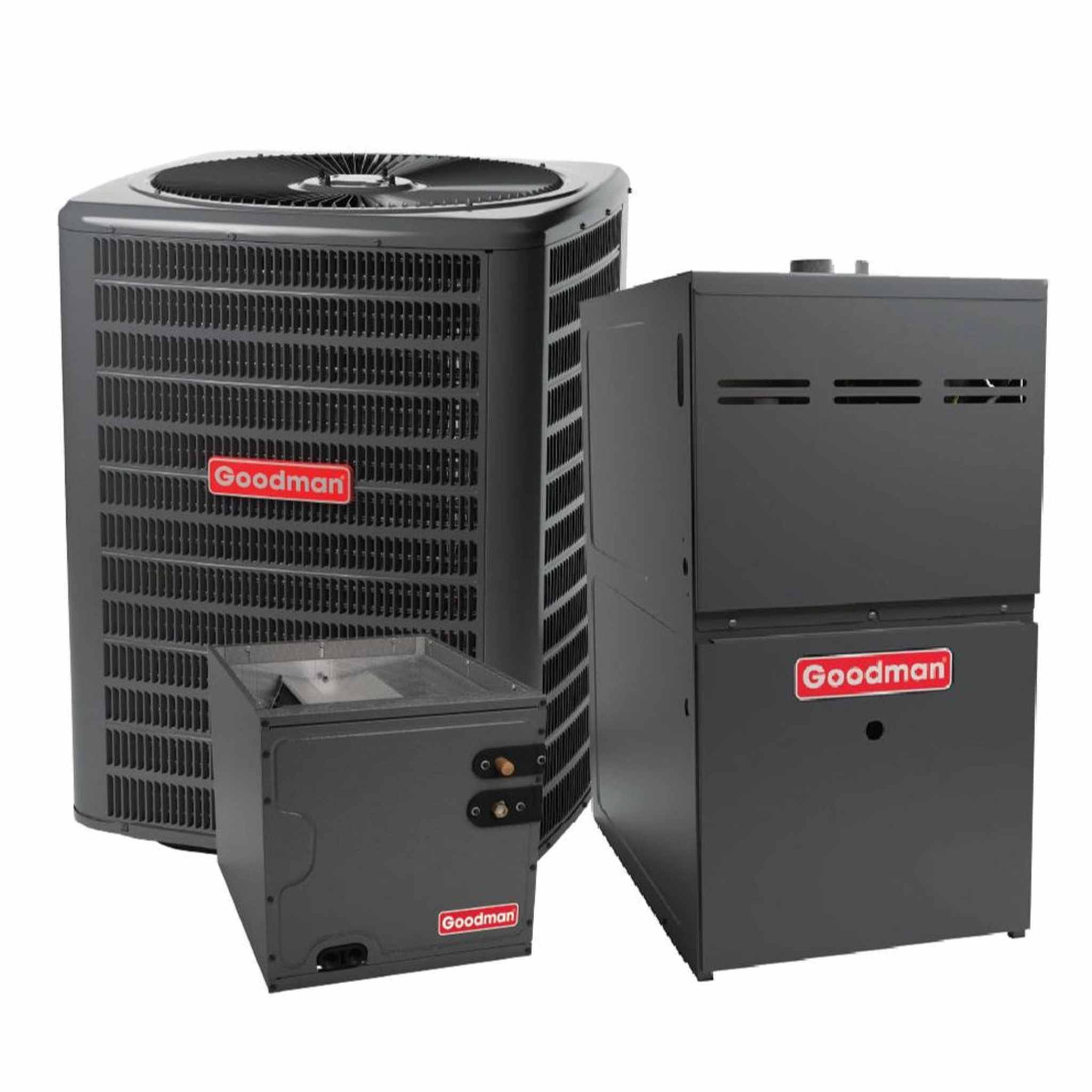

Goodman 3 Ton 14 SEER2 AC & 80% AFUE 100K BTU Gas Furnace System, R32 Refrigerant - Upflow

The Goodman 3 Ton 14 SEER2 AC & 80% AFUE 100K BTU Gas Furnace System with R32 Refrigerant - Upflow (Model: GLXS3BN3610) offers a comprehensive, energy-efficient solution for cooling and heating. Designed for long-lasting performance, ease of maintenance, and reduced energy consumption, it is an ideal choice for your home comfort needs.

Air Conditioner Features of the Goodman 3 Ton 14 SEER2 AC:

• Energy-Efficient Compressor: Maximizes cooling efficiency while reducing energy use.
• Fully Charged: Pre-charged for up to 15 feet of tubing for a hassle-free installation.
• Durability: Copper tube with enhanced aluminum fin coil (5mm diameter), factory-installed filter drier, and high-pressure switch.
• Extended Life Components: Sweat connection service valves, enclosed contactor with lug connection, and capacitors with extended life.
• Certifications: Additionally, AHRI Certified and ETL Listed, ensuring quality performance.

Cabinet Features of the Goodman 3 Ton 14 SEER2:

• Grille-Style Top: Removable design compliant with UL 60335-2-40 for easy access.
• Increased Airflow: Venturi for optimized airflow velocity.
• Durable Finish: Architectural Gray powder-coat finish with 500-hour salt-spray approval, wire fan discharge grille, and steel louver coil guard.
• Maintenance Access: Top and side access for easy servicing; single-panel access to controls with space for field-installed accessories.
• Multi-Position Installation: Also, it is suitable for upflow, horizontal left or right applications.
• Ventilation Options: Certified for direct (2-pipe) or non-direct (1-pipe) venting, with easy top venting and optional side vent.
• Convenient Connections: In addition, left or right connections for gas and electrical service.
• Durability: Heavy-gauge steel cabinet with a durable finish, and less than 2% air leakage (Qleak).
• Flexible Air Returns: Bottom or side return air applications.

Evaporator Coil - CAPTA3626C3:

• Optimized for R-32: All-aluminum coil designed to enhance the performance of R-32 refrigerant.
• Efficient Drainage: In addition, UV-resistant, rust-proof thermoplastic drain pan with low water retention and secondary drain connections.
• Installation-Friendly: Vertical application, 21” depth for easy attic access, and single front access panel for maintenance.
• Improved Efficiency: Foil-faced insulation to reduce cabinet condensation and boost performance.

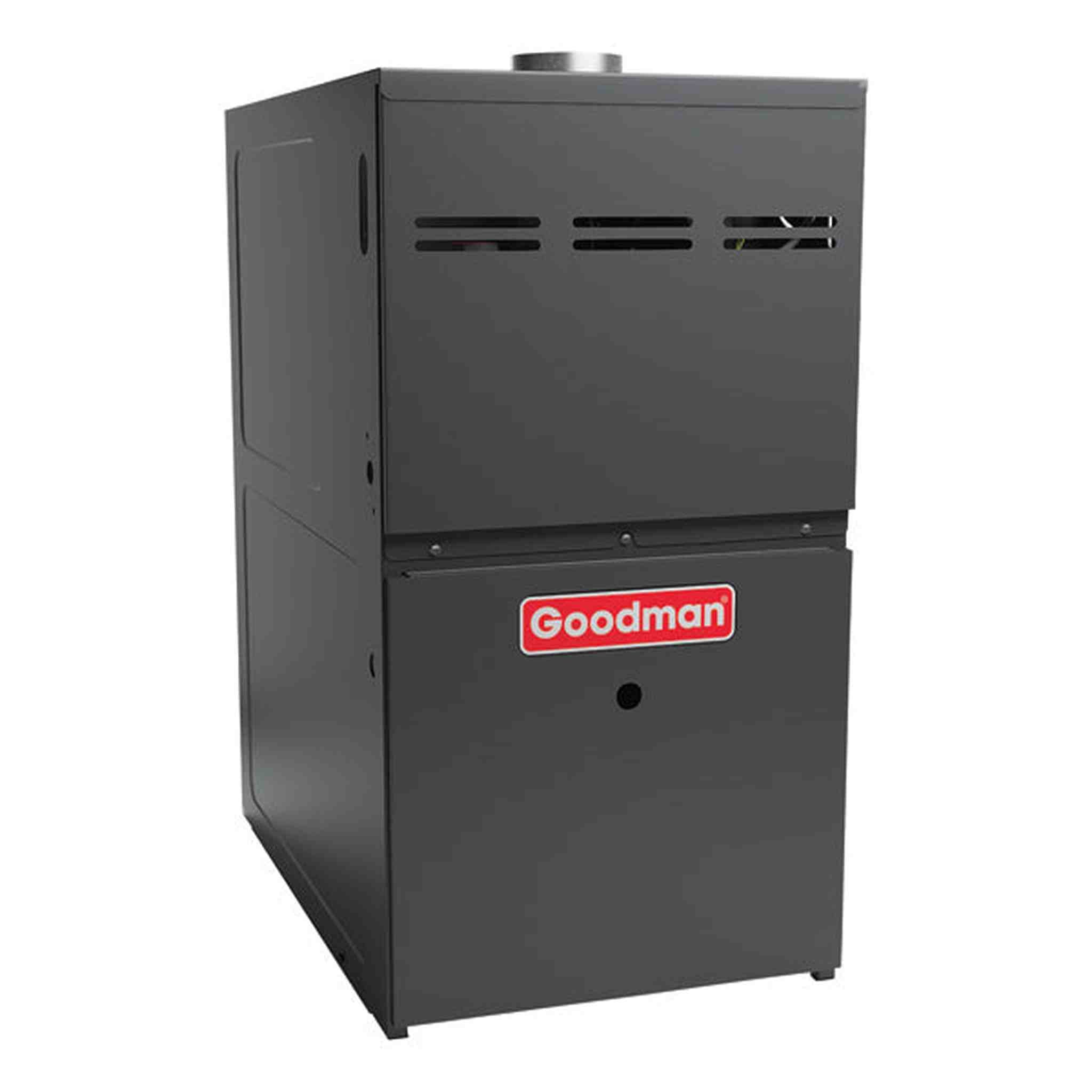

Gas Furnace - GR9S801005CN:

• 80% AFUE Efficiency: Furthermore, Goodman 3 Ton 14 SEER2 provides reliable, energy-efficient heating with optimal comfort.
• Long-Lasting Igniter: Durable and reliable for extended use.
• Quiet Operation: Efficient, quiet air circulation for better comfort.
• Improved Air Quality: Moreover, it provisions for installing electronic air cleaners and humidifiers for healthier indoor air.
• Advanced Diagnostics: Self-diagnostic control board for easy troubleshooting.
• Eco-Friendly: Lower NOx emission and energy-efficient circulation for better air quality.

In summary, the Goodman 3 Ton 14 SEER2 AC & 80% AFUE 100K BTU Gas Furnace System combines energy-efficient cooling and heating with high-quality components, making it an ideal choice for both comfort and cost savings. Therefore, the system is built for long-term reliability, easy maintenance, and effective air circulation.
